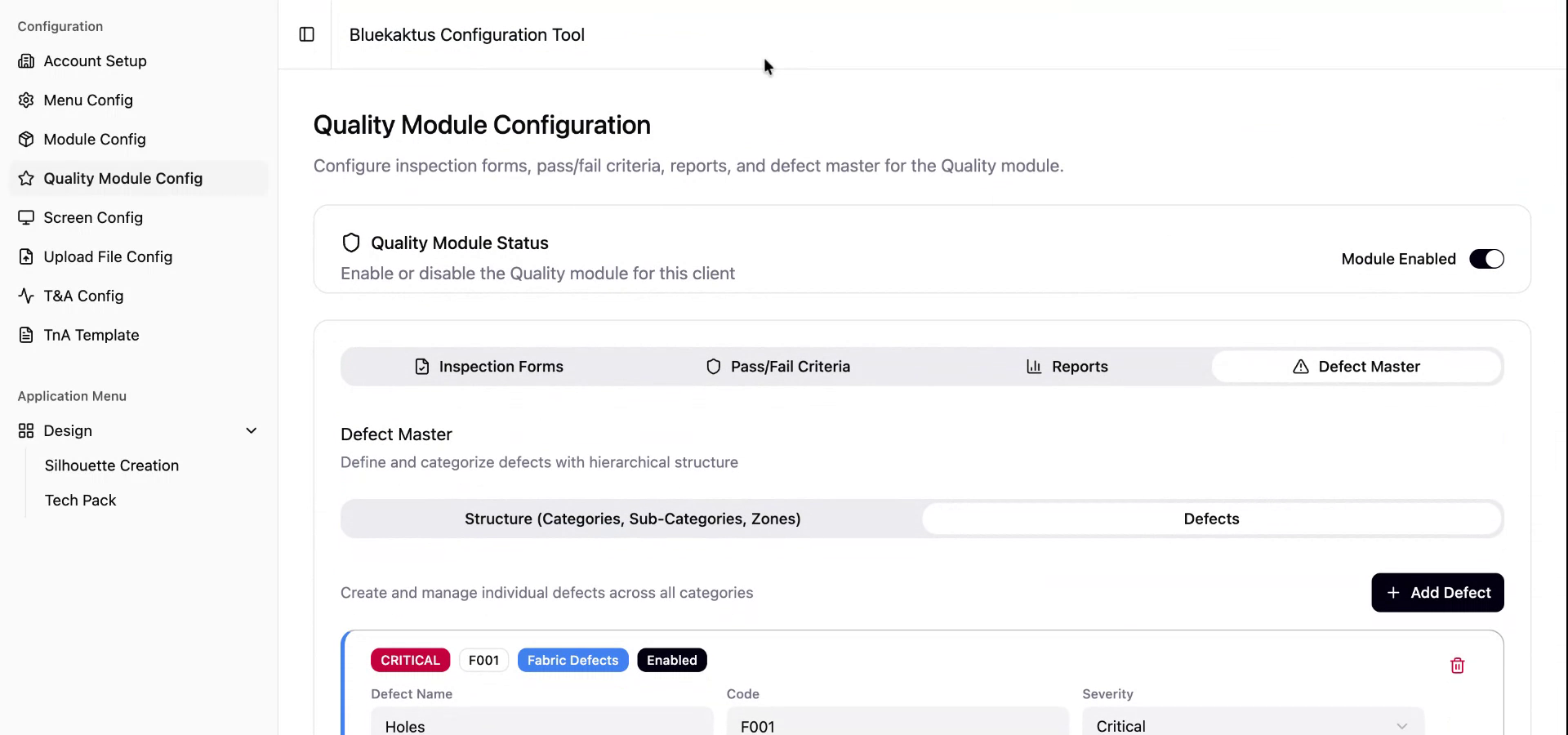

Configuration of Defect Master

This document outlines the process of configuring the defect master in the quality module. The defect master allows users to define the structure for categories, sub-categories, and zones related to defects. This configuration enables users to systematically manage and track defects within various zones and classifications of a product.

Step 1

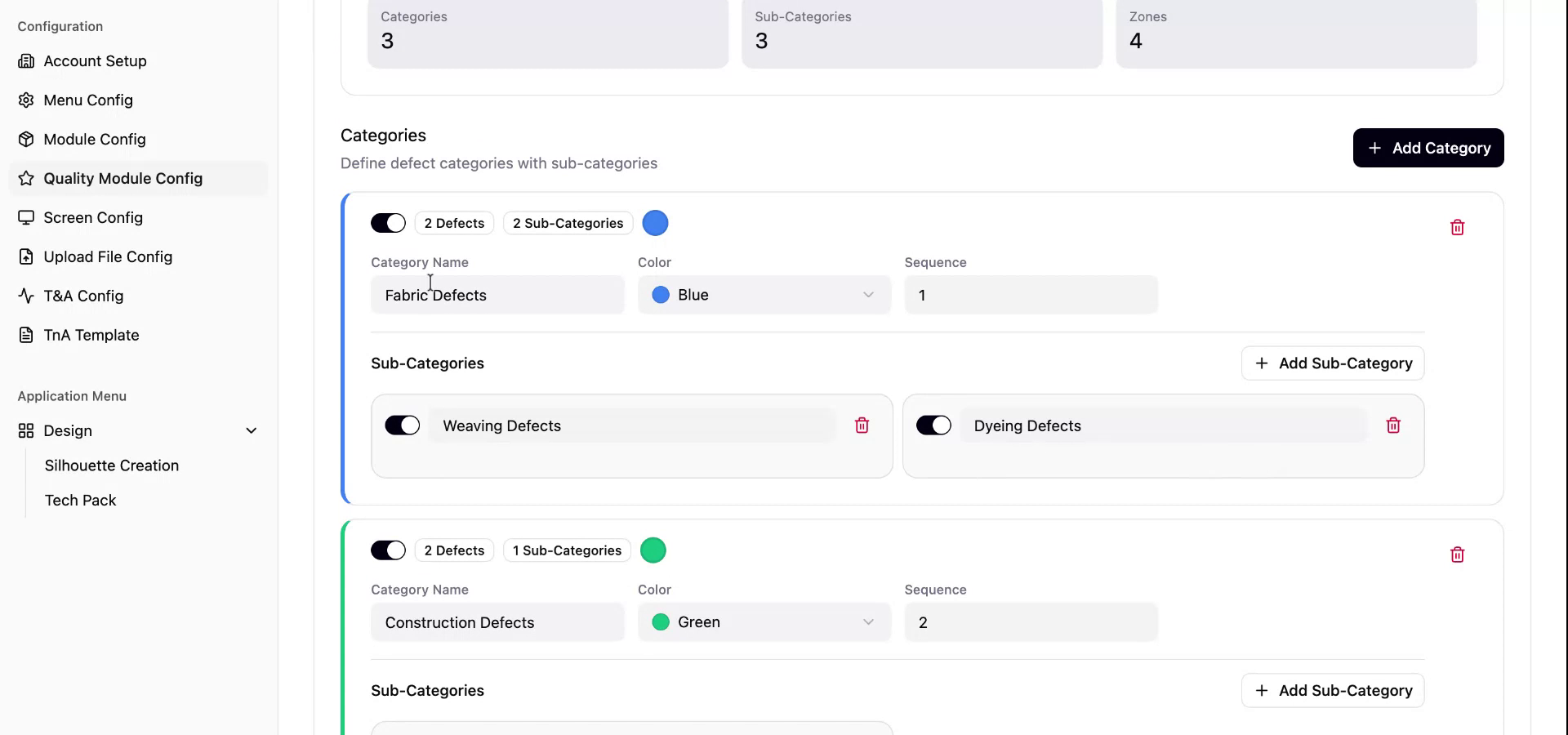

Begin by configuring the defect master, where users can define the structural hierarchy, which includes categories, sub-categories, and zones. These components represent the parent-level defect, under which various related defects can be categorized.

Step 2

For example, you may add a defect related to fabric and configure it with a specific color designation, such as blue sequence one.

Step 3

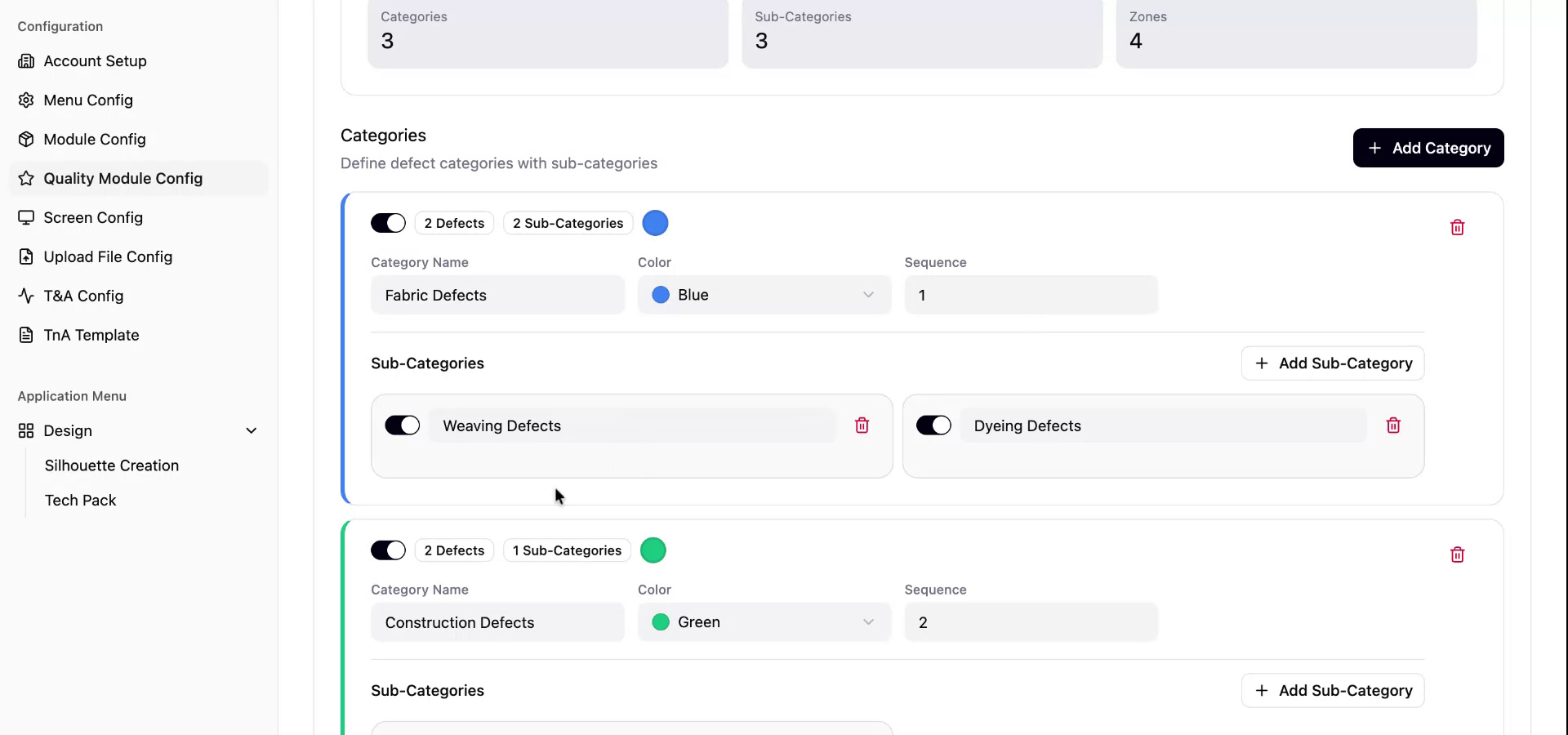

It is possible to add multiple sub-categories to the main category. Define the categories and sub-categories, as well as specific zones that might be applicable based on the type of clothing or fabric, and which areas might be prone to certain defects.

Step 4

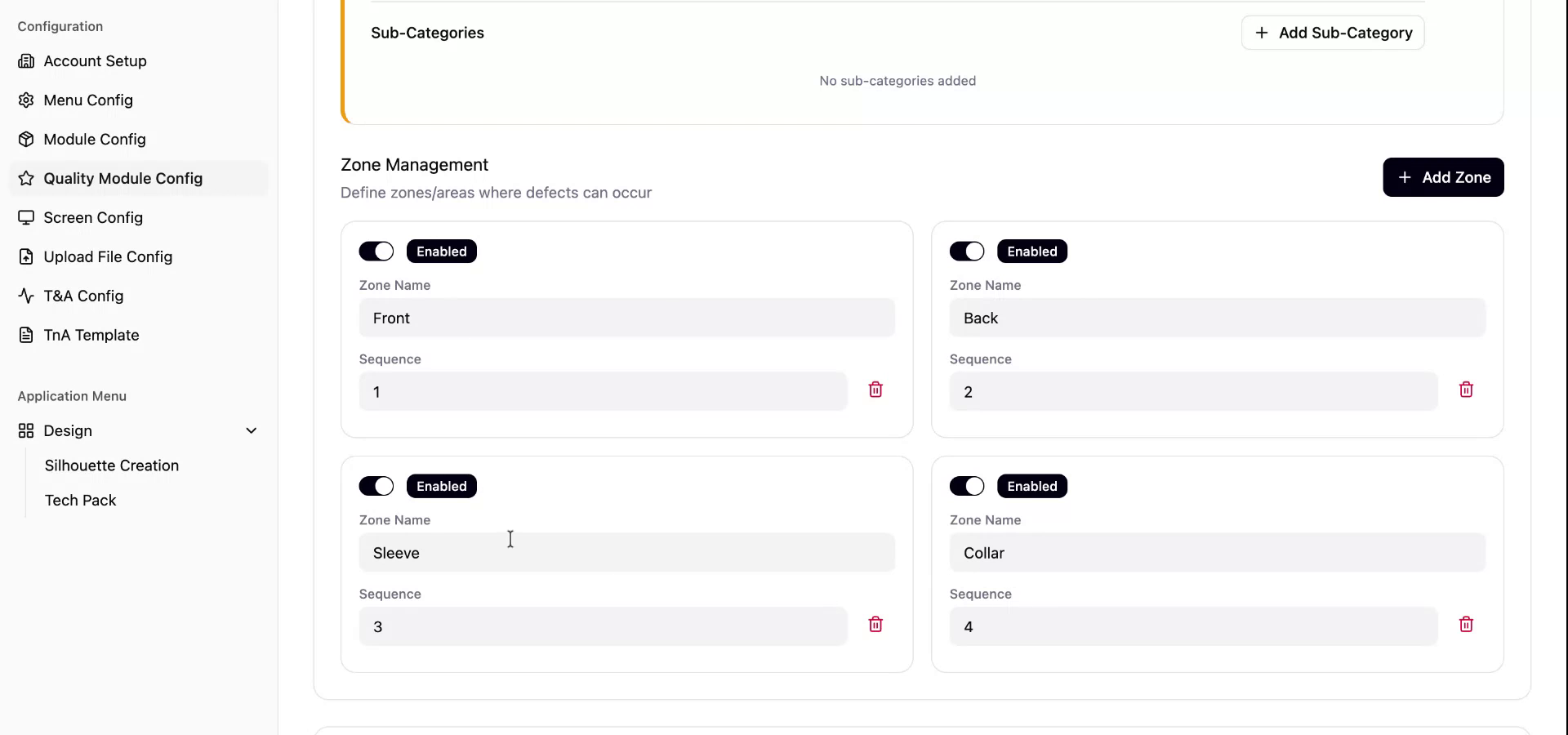

Define specific zones in this section. Save the configuration once completed, and proceed to define all applicable defects within this tab.

Step 5

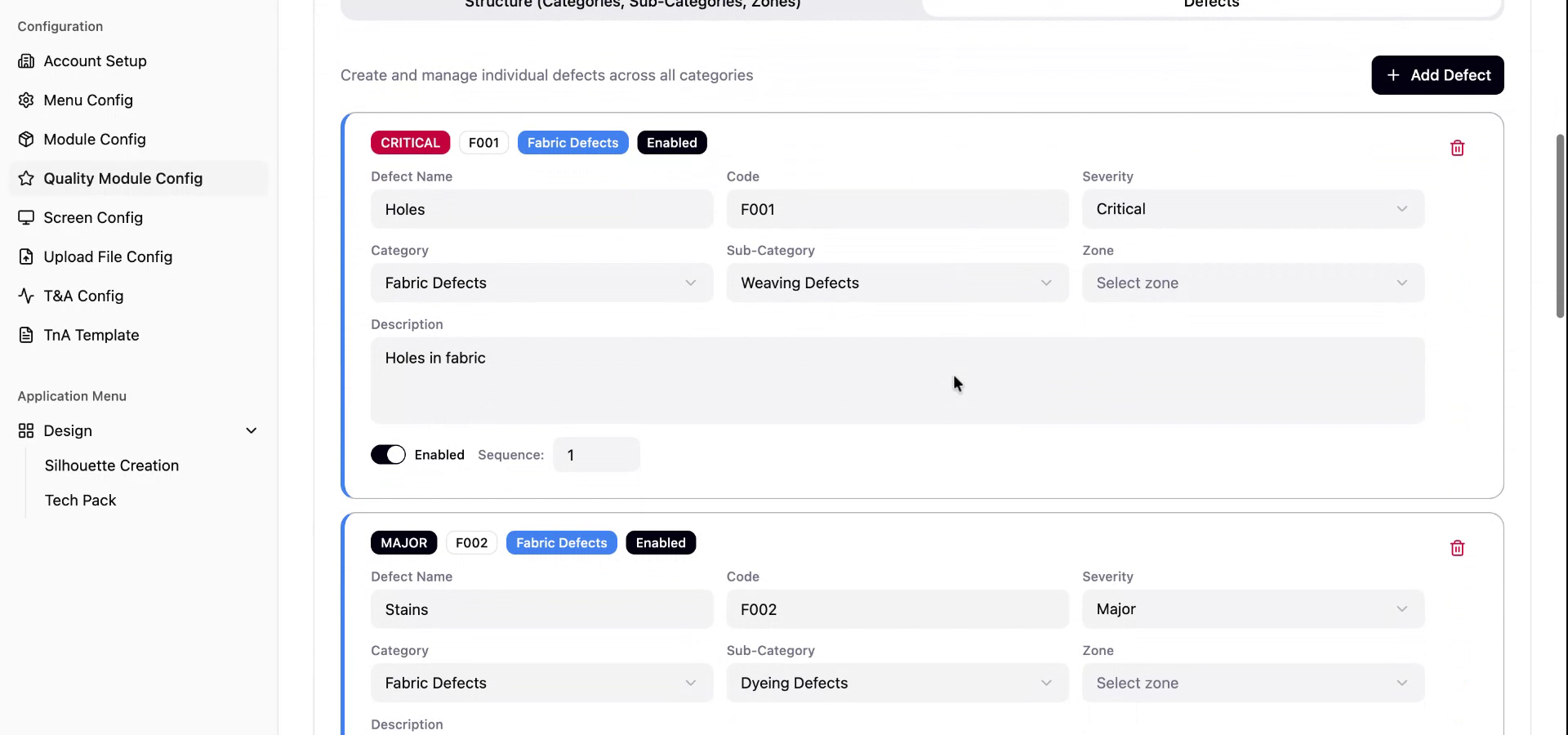

In this step, define a name for the defect and associate it with the relevant category, sub-category, or zone. You will also need to determine the CVRT classification (critical, major, minor), which will trigger previously defined calculations and display them accordingly.

Step 6

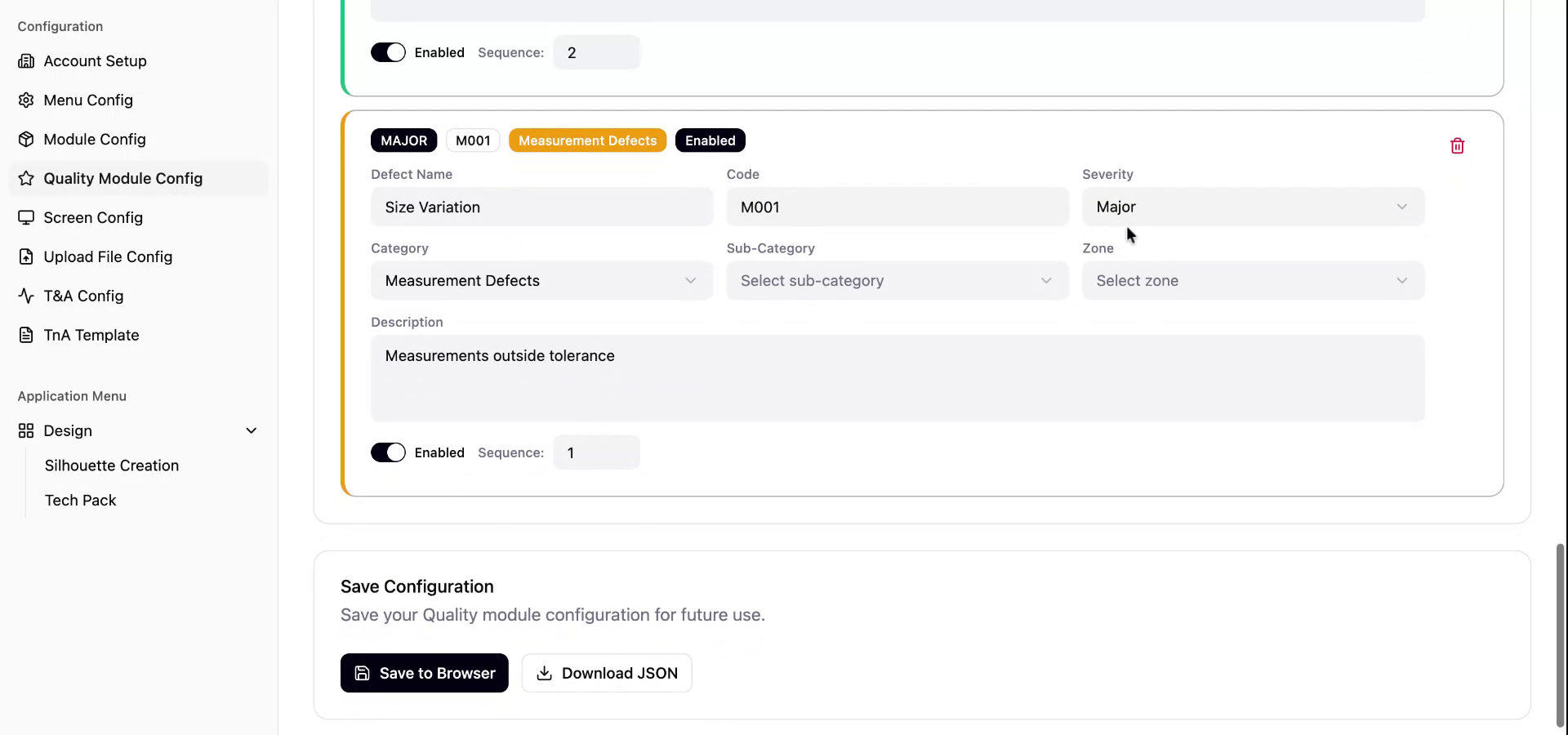

Various configurations are available here and can be modified as needed.
